FD-B4S
FD-B4S FD-B4S FD-B4S

FD-B4S

Product code: robot-017

Quick Overview

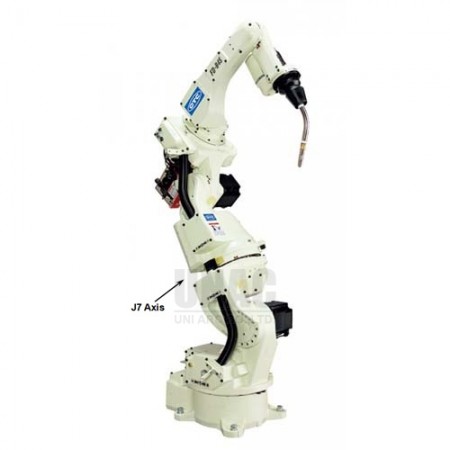

7-Axis Ultra-Flex Welding Robot

Listed Price
0 THB

The 7-Axis Robot Provides unmatched freedom of movement.

  • Interference with tooling and/or work is easily avoided.
  • Easy teaching, even for a two-electrode torch.
  • Multiple 7-axis robots create a compact production line.
  • The seventh axis may eliminate the need for additional positioners.
  • Welding cables are housed/built-in the J7-axis to avoid interference.
Specification
Number of Axes 7
Maximum Payload Capacity 4 kg
Maximum Working Range Radius 1,411 mm
Positional Repeatability ± 0,08 mm
Mass (Weight) 189 kg
Driving Capacity Please ask
Installation Method Floor
Maximum Speed  Arm J1, J2, J3 [210°/s], J7 [180°/s];Wrist J4, J5 [420°/s], J6 [600°/s]
Rotation/Lower/Upper Arm Arm J1 [± 170°/s], J2 [-145° ~ +70°] , J3 [-170° ~ +143,6°], J7 [± 90°]
Swing/Bending, Torch Wrist J4 [155°/s], J5 [-45° ~ +225°]
Twist Wrist J6 [205°/s]
Robot Application Arc Welding, Handling
Axes 7 Axis
Payload (kg) 004-007 kg
Working range (mm) 1000-1500 mm
Weight
