FD-V20S
FD-V20S FD-V20S FD-V20S

FD-V20S

Product code: robot-013

Quick Overview

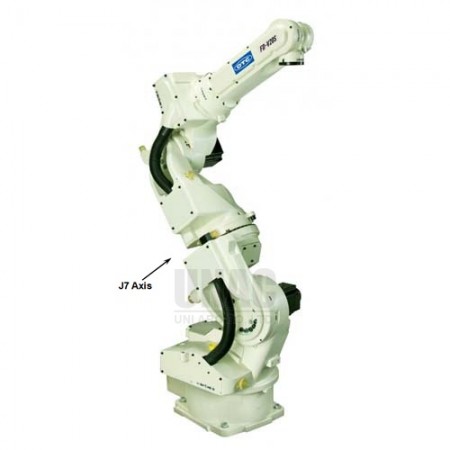

7-Axis Ultra-Flex Welding Robot

0 Review(s) | Be the first to review this product

Listed Price
0 THB
Download Catalogue
Quotation
Pay by installments

The 7-Axis Robot Provides unmatched freedom of movement.

  • Interference with tooling and/or work is easily avoided.
  • Easy teaching, even for a two-electrode torch.
  • Multiple 7-axis robots create a compact production line.
  • The seventh axis may eliminate the need for additional positioners.
  • Welding cables are housed/built-in the J7-axis to avoid interference.







Specification
Number of Axes 7
Maximum Payload Capacity 20 kg
Maximum Working Range Radius 1,710 mm
Positional Repeatability ± 0,08 mm
Mass (Weight) 321 kg
Driving Capacity Please ask
Installation Method Floor
Maximum Speed Arm J1 [195°/s], J2 [190°/s], J3 [180°/s], J7 [160°/s]; Wrist J4, J5 [400°/s], J6 [600°/s]
Rotation/Lower/Upper Arm Arm J1 [± 170°/s], J2 [-145° ~ +70°] , J3 [-170° ~ +160°], J7 [± 90°]
Swing/Bending, Torch Wrist J4 [180°/s], J5 [-50° ~ +230°]
Twist Wrist J6 [360°/s]
Robot Application Arc Welding, Handling
Axes 7 Axis
Payload (kg) 008-020 kg
Working range (mm) 1500-2071 mm
Weight
