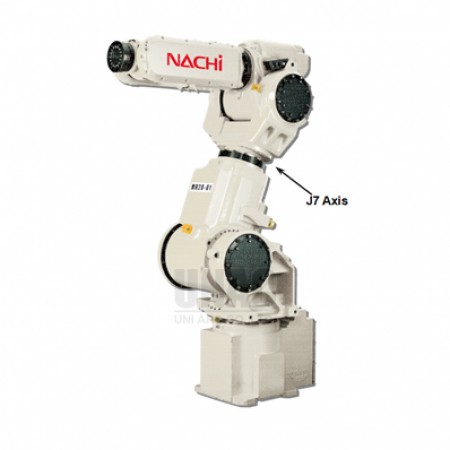

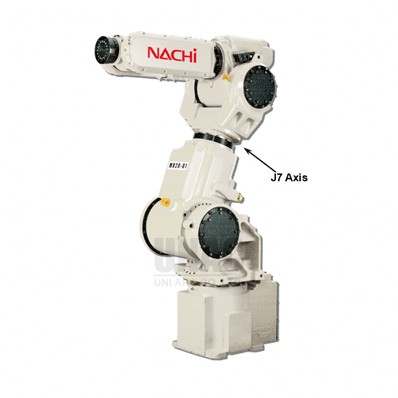

MR20 series MR20/20L
Quick Overview
Low Capacity 7-Axis Robots
0 THB
More Complicated Operations can be Handled due to Having 7 Axes
It has become possible to use robots in narrow spaces or locations with obstructions where 6-axis robots cannot be used.
Compact Body / Powerful Arm
It can be installed in small spaces.
The body is compact, but it has a load capacity of 20kg.
Maximum 30Kg*1
*1. The operation range is limited when the load capacity is 30Kg.
| Specification |
|
||||||||||||
| Robot Application | Handling | ||||||||||||
| Axes | 7 Axis | ||||||||||||
| Payload (kg) | 008-020 kg | ||||||||||||

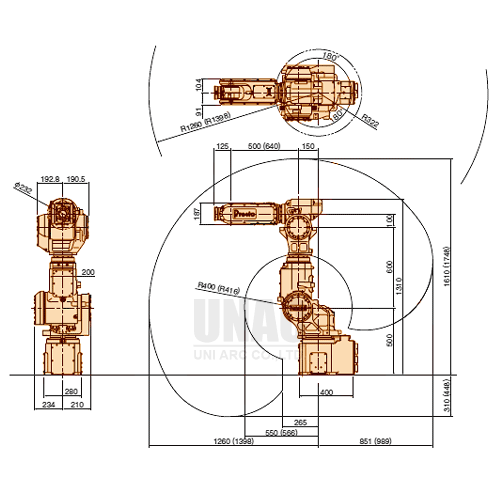

| Working range (mm) | 1000-1500 mm | ||||||||||||
| Weight |
