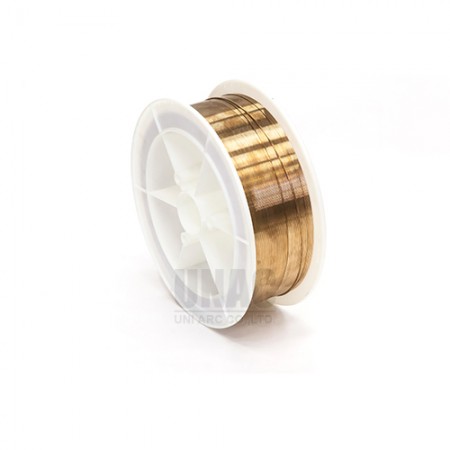

MIG Brazing Wire (DIL350)
Quick Overview
Copper alloy wire for light gauge drawn steel welding
MIG Brazing Wire (DIL350)
Copper alloy wire for light gauge drawn steel welding.
MIG BRAZING WIRE DIL 350
DIL 350 wire is special alloy developed as the material for MIG brazing, which is made of copper as the base metal with silicon and manganese, generally named silicon bronze or MIG brazing wire. Our DIL 350 wire is especially applicable for light gauge steel sheet for the automobile industry. The produces very smooth beads finish. DIL 350 wire utilizes the eutectic point of the brazing material in order to reduce the heat distortion of base metals as much as possible. The braze metal melting temperature is very low and bead height is very small. DIL 350 has very good grind ability since the hardness of the DIL 350 is controlled. With attention to the root gap and joint shape, DIL350 is applicable to lapped fillet welding, butt-welding, horizontal fillet welding and edge welding with all welding positions.
MIG BRAZE WELDING METHOD
MIG brazing is one of the joining methods for light gauge steel (SPCC, SS41P, etc.) without melting the base metal using a MIG welder with copper alloy as the wire material wound on a reel. For this welding method, only argon gas is used.
Specification | |
Weight |
Write Your Own Review
You may also be interested in the following product(s)
-

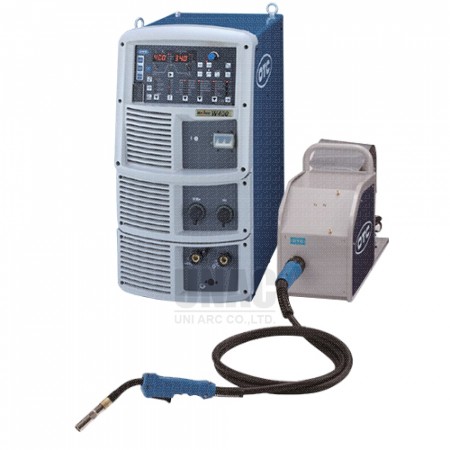

WB-M500 CO2/MAG/MIG welding machine
Realizing High Accuracy and High Quality with available modes: CO2/MAG, SUS MIG
-
FD-B6L-WBM350L Arc Welding Robot (Long-arm, Low-spatter)
Arc Welding Robot (Long-arm), 6 Axis, with welding machine Welbee M350L(Low-spatter) 350A
-

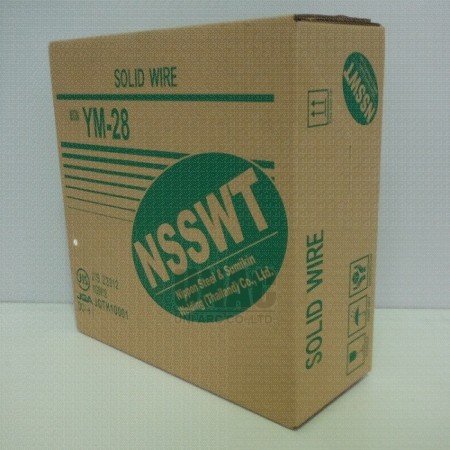

NSSW YM-26 Welding Solid Wire
