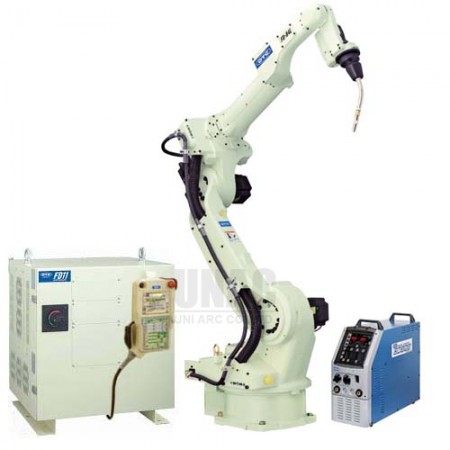

FD-B6L-WBM350 Arc Welding Robot (Long-arm)
Quick Overview
Arc Welding Robot (Long-arm), 6 Axis, with welding machine Welbee M350 (350A)
0 THB
Product Options
Stand
size 400mm
Base(L)
size 3500 x 3500mm
Table(L)
size 900 x 1500mm
Cell(L) for 1 Robot Station
size 4000 x 4000mm
Cell(L) for 2 Robot Stations
size 4000 x 4000mm
Cell(L) for 3 Robot Stations
size 4000 x 4000mm
Positioner
Slider
Consist of :-
- Robot Manipulator FD-B6L
- Control Unit (Including Relay Unit) FD-11
- Teach Pendant (Cable length 8m)
- Operation Box (Cable length 5m)
- Control Cables (5m)
- Welding Power Supply Module WB-M350
- Welding Torch RT3500H (45deg Air Cool)
- Wire Feeding Unit AF-4012
- Transformer 3KVA
- Robot Stand
| Specification | |
| Welding Process | CO2/MAG |
| Axes | 6 Axis |
| Robot Application | Arc Welding |
| Payload (kg) | 004-007 kg |
| Working range (mm) | 1500-2071 mm |
| Capacity (amp) | up to 350A |
| Weight |
