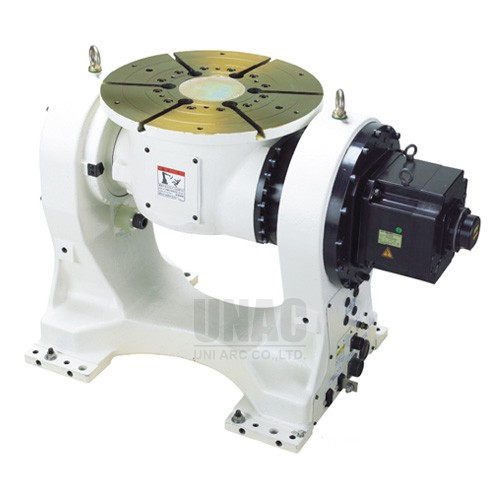

A2PF1001-ENN Positioner
Quick Overview
2-Axes Double Support Positioner 2PF Series
0 THB
* High-speed motion increases production efficiency!
An increase in the maximum rotation speed of the tilting axix by 2.5 times and in rotation axis by
2 times was achieved in comparison with the conventional machine 300 kg payload type.
| Specification |
|
||||||||||||||||
| Axes | 2 Axis | ||||||||||||||||
| Payload (kg) | 701-1000 kg | ||||||||||||||||
| Working range (mm) | 0-1000 mm | ||||||||||||||||
| Weight |
