FD-B6
Quick Overview
Faster, Slimmer, Powerful, Tough, 6 Axis, Payload 6 Kgs
0 THB
Faster, Slimmer & more User-Friendly
A fully re-designed robot with built-in cables completely new and improved!

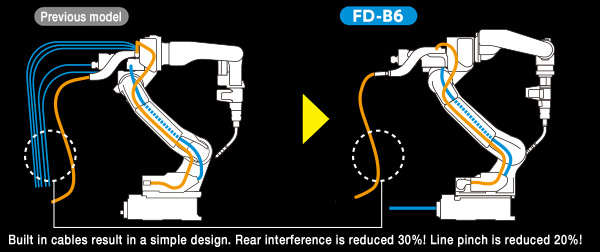

All cables required for synchro-feed welding are already built into the robot
- Faster cycle time: Due to the industry fastest speeds, cycle times are reduced.

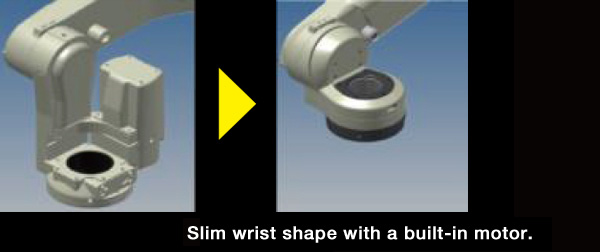

- Slim design: Built-in wrist motors avoid interference with jigs and workpieces. Slim arm enables high-density installations.
- User-friendly operation: Designed to avoid interference behind the arm (All cables required for synchro-feed welding are already built into the robot.

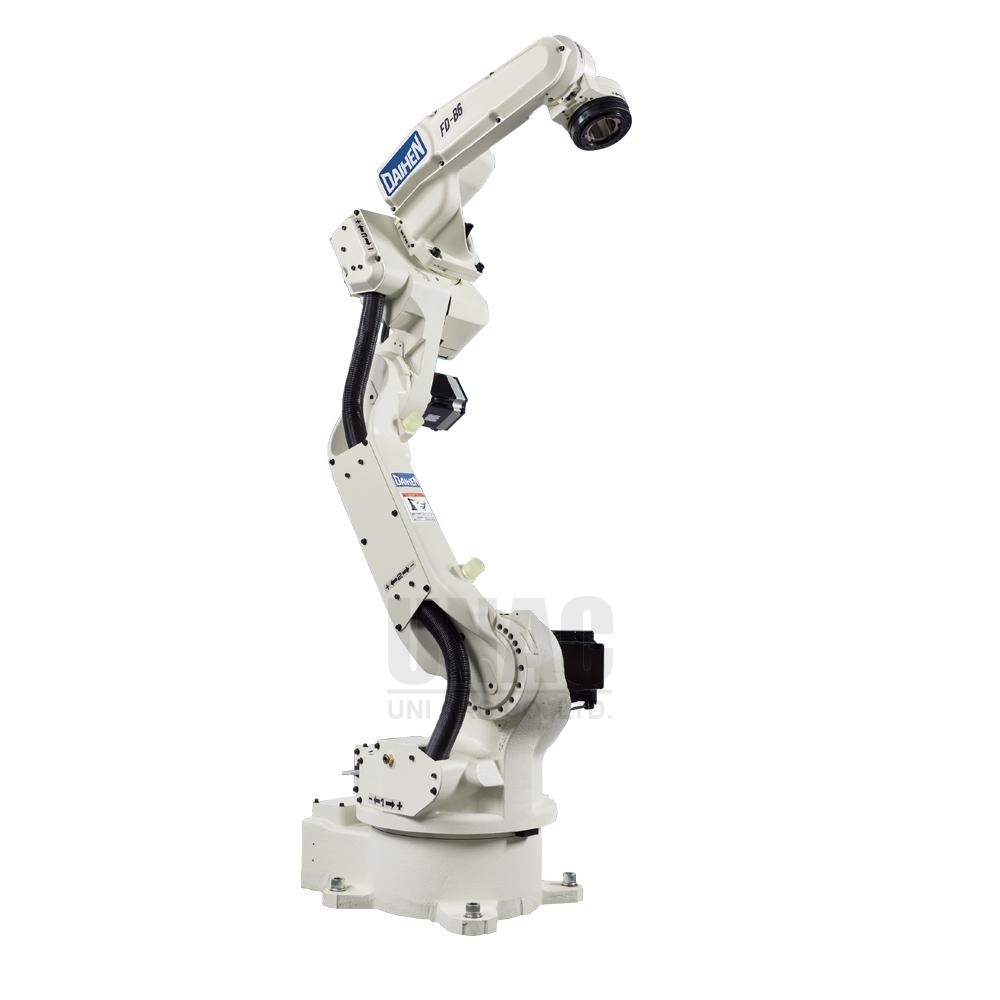

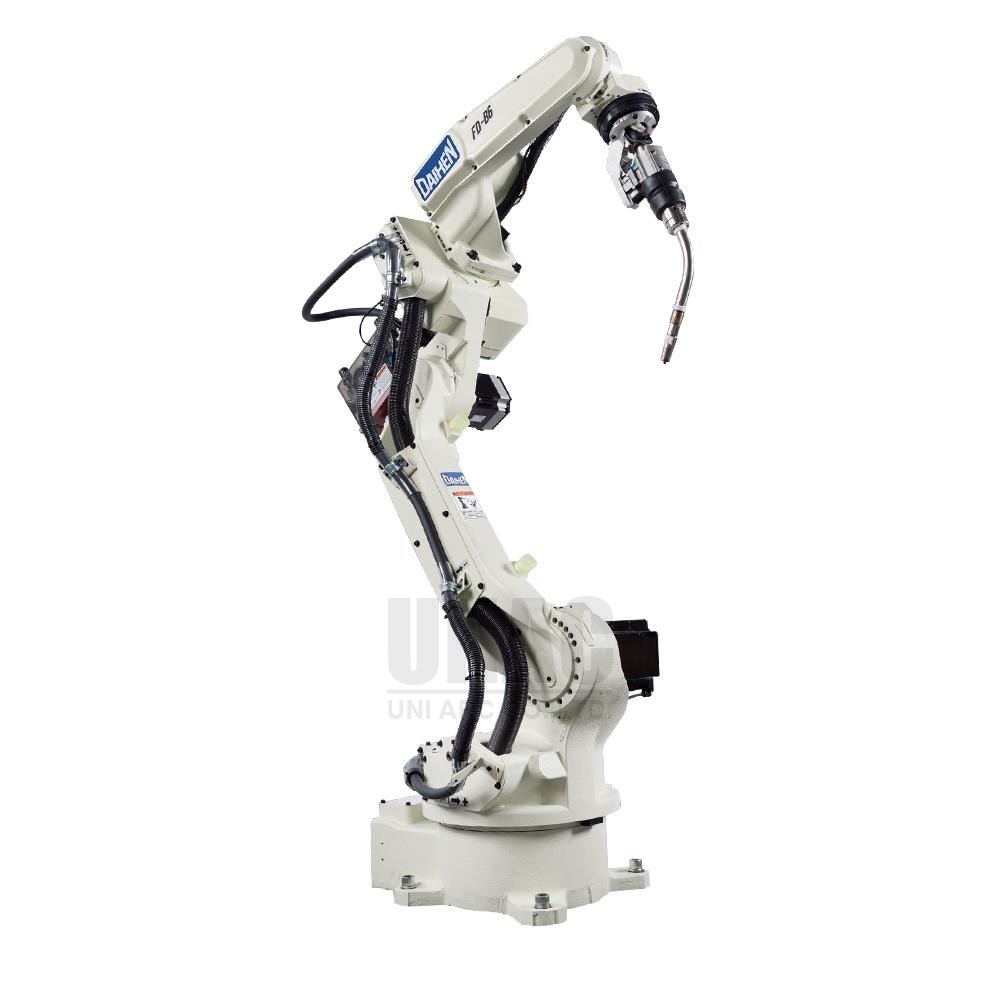

- Powerful: Payload increased 1.5x to 6 kg, providing surplus payload for torch and sensor models, accommodates advanced welding technologies such as Synchro-feed and Cold Tandem. It is also good for handling application.
- Tough: IP64 environmental raiting: dust-proof and rainproof.
| Specification |
|
||||||||||||||||||||||
| Robot Application | Arc Welding, Handling | ||||||||||||||||||||||
| Axes | 6 Axis | ||||||||||||||||||||||
| Payload (kg) | 004-007 kg | ||||||||||||||||||||||

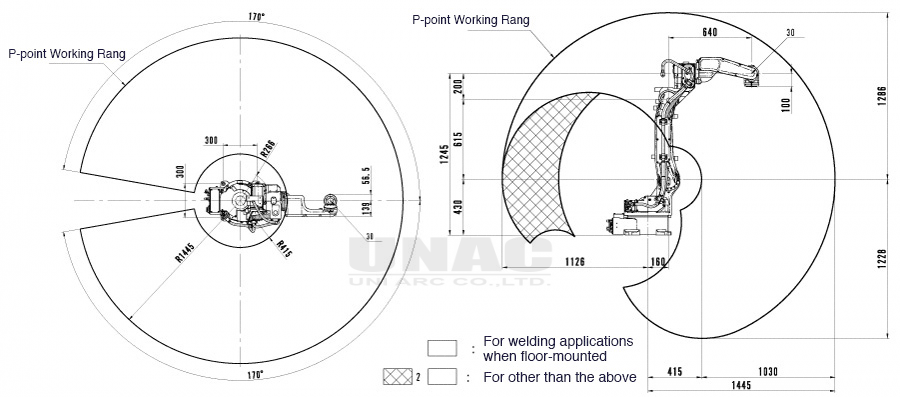

| Working range (mm) | 1000-1500 mm | ||||||||||||||||||||||
| Weight | 145.0000 |
