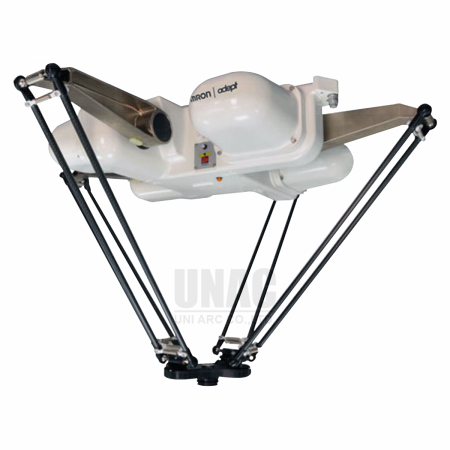

Quattro 650H / HS
Quick Overview
4-axis parallel robot, Fast Pick & Place
0 THB
Product Options

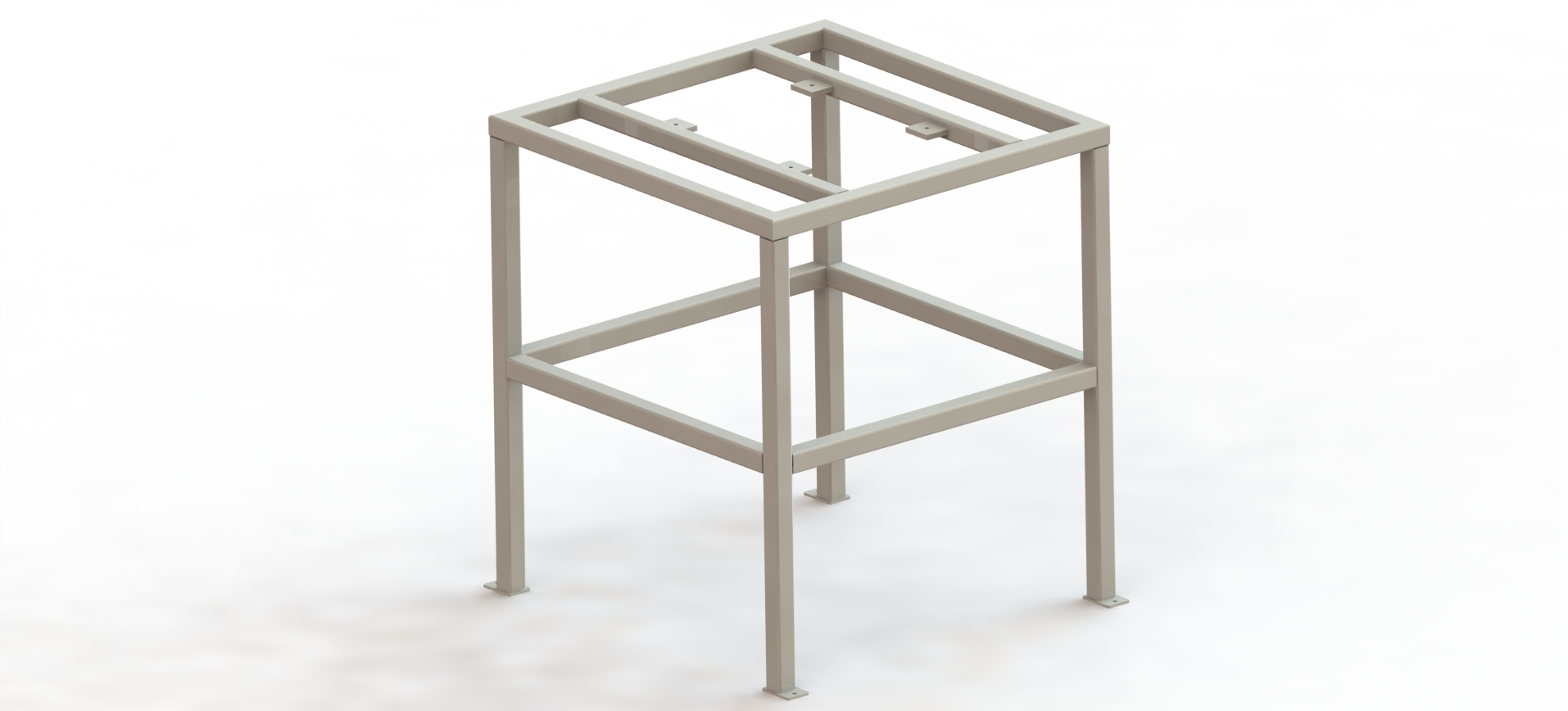

Cell Structure
size 1580 x 1580mm
End Tool Vaccum
HMI Touchscreen 7 inch
PLC Mitsu Q Series 32 I/O Motor drive 500w X2
Input Roller Conveyor
size W600 x L2000 x H900mm
Output Belt Conveyor
size W300 x L1500 x H600mm
Front Panel
Pendant
Camera
Conveyor Tracking
Cable Seal Kit
• Ethernet capability to control the robot through the familiar programming language (IEC 61131-3) of Machine Automation Controller NJ/NX/NY Series
• Four-axis arm evenly distributes the load on the robot
• Fast and high-precision conveyance and assembly
• Designed with a high payload to support multi-hand (multi-picking)
• Supports fast Pick & Place on a fast conveyor
• Meets the sanitary standards of the United States Department of Agriculture for prevention of product contamination
• Maximum working diameter 1,300 mm
• Working height 500 mm
• Maximum payload 15 kg
• Weight 117 kg
| Specification | |
| Robot Application | Parallel Robot |
| Axes | 4 Axis |
| Payload (kg) | 008-020 kg |
| Working range (mm) | 1000-1500 mm |
| Weight | 117.0000 |
