eCobra 800 Lite/Standard/Pro
Quick Overview
Large SCARA robot
0 THB
Product Options
Stand
size 252 x 352mm
End Tool Vaccum
HMI Touchscreen 7 inch
PLC Mitsu Q Series 32 I/O Motor drive 500w X2
Input Roller Conveyor
size W600 x L2000 x H900mm
Output Belt Conveyor
size W300 x L1500 x H600mm
Table for Pick & Place
size 400 x 600mm
Front Panel
Pendant
Camera
Conveyor Tracking
Solenoid Valve Kit
Cable Seal Kit

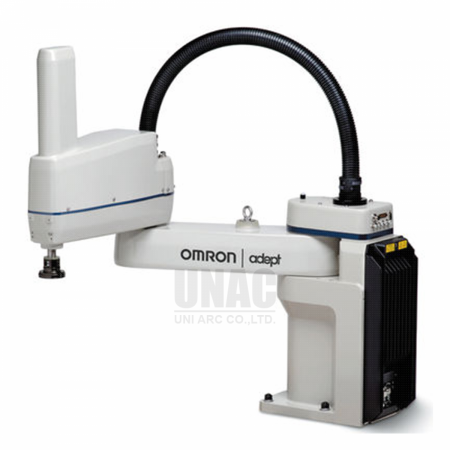

Large SCARA robot for precision machining, assembly, and material handling
• Ethernet capability to control the robot through the familiar programming language (IEC 61131-3) of Machine Automation Controller NJ/NX/NY Series• Reach is extended to 800 mm without compromising repeatability
• High payload for screw-driving tools
• The amplifier and controller built into the robot reduces the number of cables
• Choose the right robot for you application from three different types
• Reach 800 mm
• Maximum payload 5.5 kg
• Weight 43 kg

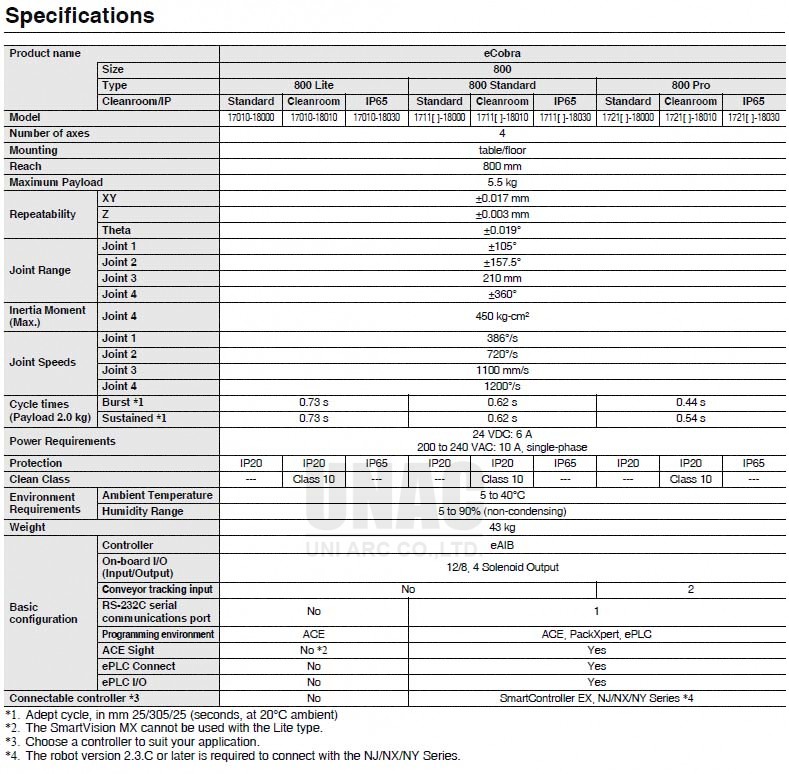

| Specification | |
| Robot Application | SCARA Robot |
| Axes | 4 Axis |
| Payload (kg) | 004-007 kg |
| Working range (mm) | 0-1000 mm |
| Weight | 43.0000 |
