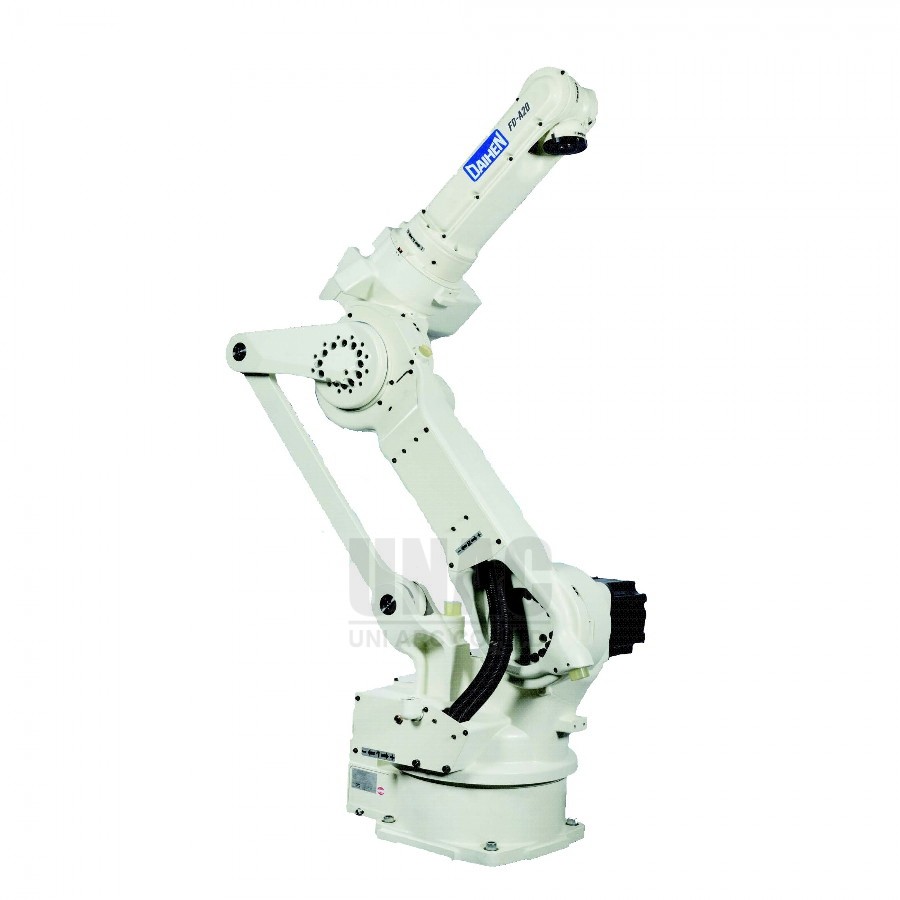

FD-A20
FD-A20 FD-A20 FD-A20

FD-A20

Product code: robot-028

Quick Overview

World class, high-accuracy, optimized for Laser micro-fabrication, Laser applications

Listed Price
0 THB

World class, state-of-the-art, high-accuracy robot for micro-fabrication (joining and cutting) :-

  • High-accuracy:
    • High tracking accuracy throughout the entire robot work envelope.

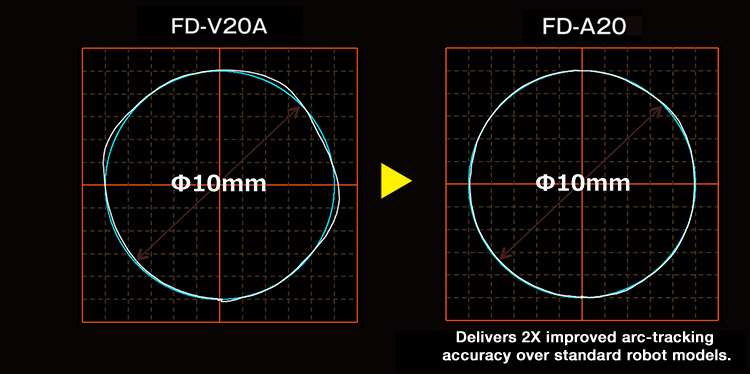

    • High accuracy delivered in both straight-line and small-arc applications.

  • Optimized for laser micro-fabrication, laser applications:
    • Standard interface with easy teaching and integration to production-ready laser oscillators.
    • Your laser cutting programs are automatically generated from your CAD data via our offline teaching application software: FD-ST.

  • Accommodates various mounting positions (floor, ceiling and wall hanging):
    • 20kg payload accommodate a laser welding torch.

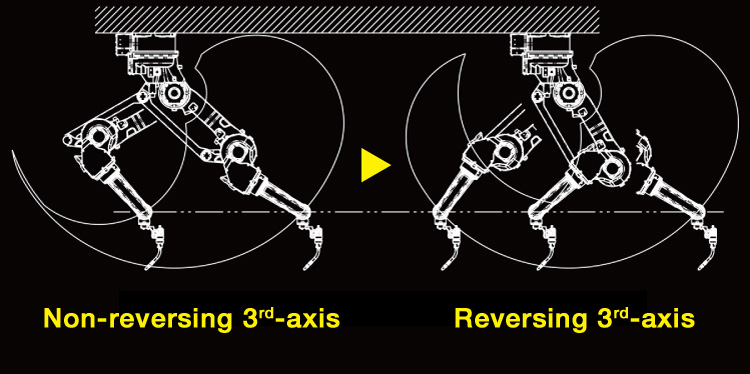

    • Even though it uses a parallel link structure, optional reverse rotation of the 3rd-axis is enabled, supporting expanded work envelope to the rear of the robot.

Specification

Number of Axes

6
Maximum Payload Capacity 20 kg
Maximum Working Range Radius 1,664 mm
Positional Repeatability ± 0.07 mm
Mass (Weight) 355 kg
Driving Capacity 7,900W
Installation Method Floor / Wall / Ceiling
Maximum Speed
Rotation/Lower/Upper Arm Arm J1 [195°/s], J2 [190°/s], J3 [180°/s]
Swing/Bending, Torch Wrist J4, J5 [400°/s]
Twistrehen Wrist J6 [600°/s]
Robot Application Laser Welding, Laser Cutting
Axes 6 Axis
Payload (kg) 008-020 kg
Working range (mm) 1500-2071 mm
Weight 355.0000
