V. Auto Tank

V. Auto Tank

As Vapour Flux is supplied from supplementary tank as much as it is used. Level of Vapour Flux is kept fixed level always.

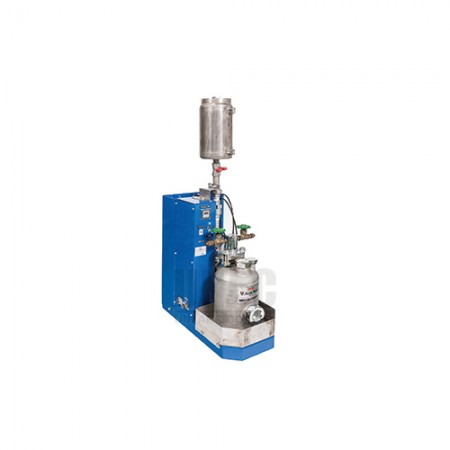

Level is kept fixed by controlling 2 pcs. of valves which are attached between supplementary tank and Vapour Tank. Valve control is operated with built-in control unit. One cycle operation of valve can supply about 100cc of Vapour Flux into Vapour Tank. If the temperature is less likely to vaporize flux low, it is also possible to use put a hot water around the tank. (High water type) ※ The photo will be high water type.

SPECIAL FEATURES

・Since stable Vapour Flux evaporation can be obtained with Vapour Flux fixed level function, heating conditions are stable and good brazing can be performed.
・Since sensor is not used, there is no adjustment place.
・As quantity of Vapour Flux can be kept a little in Vapour Tank, staying Vapour Flux is decreased in Vapour Tank. Therefore, aging of Vapour Flux can be prevented and stable evaporation can be obtained.
・Between Vapour Tank and supplementary tank is cut off always with 2 pcs. of valve controls, there is no way that Vapour Flux in Vapour Tank flows backward to supplementary tank.
・It is not necessary to add Vapour Flux during operation, since supplementary tank has large capacity.
・As Vapour Tank and supplementary tank are made of stainless steel, aging Vapour Flux is prevented and it is economical.
・Maximum used quantity of Vapour Flux per hour can be selected with switch, however, under maximum quantity, it corresponds automatically according to used quantity.
・Remained quantity of Vapour Flux in supplementary tank can be seen with level gauge easily.
・ON/OFF control signals from outside can be input.
