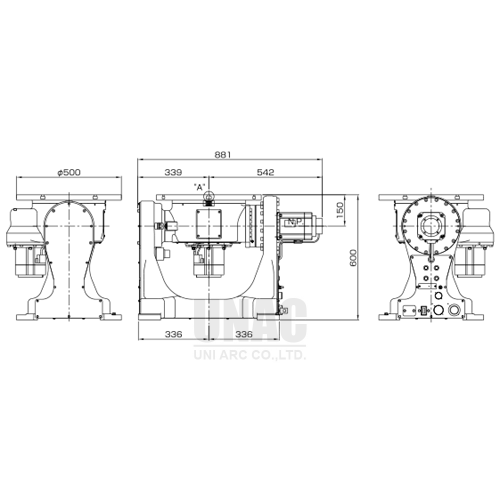

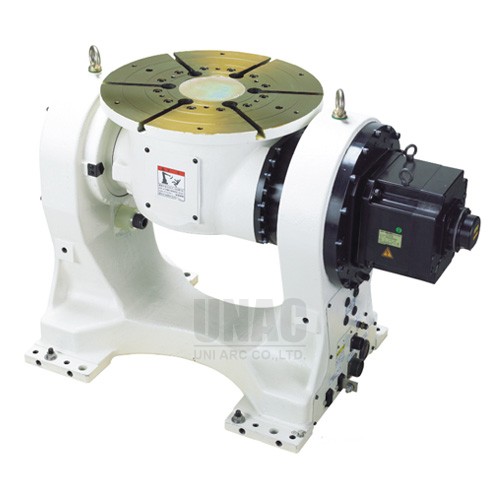

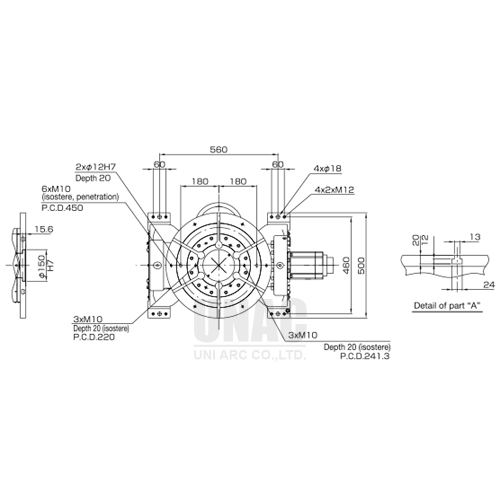

A2PF501-ENN Positioner
A2PF501-ENN Positioner A2PF501-ENN Positioner A2PF501-ENN Positioner

A2PF501-ENN Positioner

Product code: per-005

Quick Overview

2-Axes Double Support Positioner 2PF Series

0 Review(s) | Be the first to review this product

Listed Price
0 THB
Quotation
Pay by installments

* High-speed motion increases production efficiency!
   An increase in the maximum rotation speed of the tilting axix by 2.5 times and in rotation axis by
   2 times was achieved in comparison with the conventional machine 300 kg payload type.

Specification

Number of Axes

 2
Max. Payload Capacity 500 kg
Rotating Speed 2.8 rad/s {162°/s}
Tilting Speed 1.5 rad/s {84°/s}
Allowable rotating torque 392 Nm
Tilting Torque 1,347 Nm
Position repeatability ± 0.08 mm (Position at R250mm)
Mass (weight) 260 kg
Axes 2 Axis
Payload (kg) 301-500 kg
Working range (mm) 0-1000 mm
